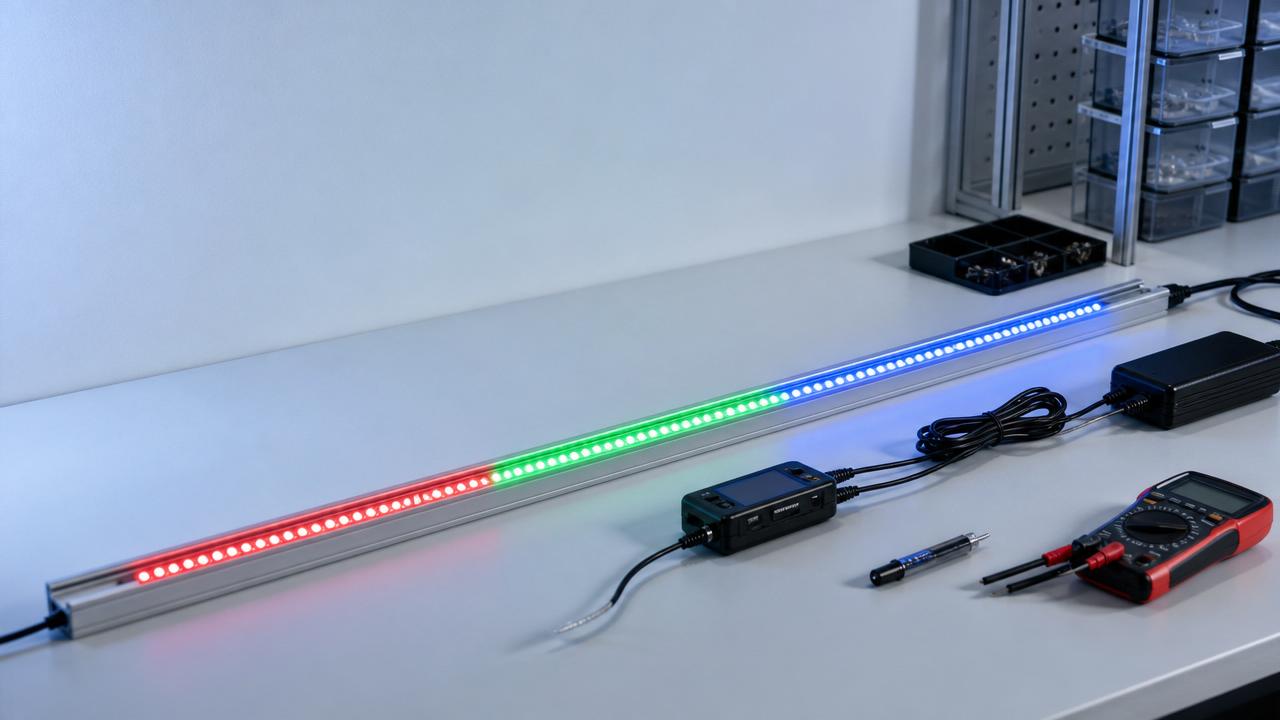

RGB LED Strips: Common Setup Mistakes to Avoid

Installing rgb led strips looks simple, but small setup mistakes can lead to uneven lighting, voltage drop, overheating, controller failures, or shortened product life.

Whether used in workspaces, display areas, cabinets, enclosures, or inspection zones, reliable lighting begins with planning, power matching, surface preparation, and safe wiring.

This guide answers common setup questions and explains how to avoid errors that reduce brightness, safety, color accuracy, and operating stability.

What are rgb led strips, and why do setup details matter?

Rgb led strips are flexible circuit boards populated with red, green, and blue LEDs that mix colors through controlled channels.

They are used for accent lighting, product displays, equipment indicators, signage, architectural edges, retail shelves, and smart interior environments.

The strip may look like a simple accessory, yet it behaves like a low-voltage electronic system.

Power delivery, conductor resistance, heat dissipation, control signals, and installation surfaces all affect the final result.

A well-planned rgb led strips installation provides consistent color, predictable dimming, and longer service life.

A poorly planned installation often shows faded colors at the far end, flicker, adhesive failure, or premature LED degradation.

The most important mindset is simple: treat rgb led strips as components, not decoration tape.

That approach supports safer wiring, better thermal behavior, and cleaner visual results in both consumer and industrial-adjacent spaces.

Mistake 1: Choosing rgb led strips without checking voltage and power load

One common mistake is buying rgb led strips before calculating total wattage and confirming the supply voltage.

Most strips are designed for 5V, 12V, or 24V operation, and these systems are not interchangeable.

Using the wrong adapter may cause weak output, overheating, component damage, or immediate failure.

Always check the wattage per meter, then multiply it by the planned total strip length.

Add a safety margin of around 20% to 30% for stable operation and lower stress on the power supply.

For example, a five-meter strip rated at 14.4W per meter needs at least 72W.

A practical power supply would be around 90W or higher, provided the voltage is correct.

This is especially important when rgb led strips are installed inside display cases or equipment enclosures.

Restricted airflow makes oversized thermal margins more valuable and reduces the risk of premature aging.

Quick check before connecting power

• Confirm strip voltage before selecting the adapter.
• Calculate total wattage using full installed length.
• Leave 20% to 30% power headroom.
• Avoid cheap supplies with unclear ratings.
• Check polarity before switching the system on.

Mistake 2: Ignoring voltage drop on long rgb led strips

Voltage drop is a frequent reason rgb led strips look bright near the power input and dull at the far end.

As current travels through thin copper traces, resistance causes available voltage to fall gradually.

The result may be dim white, inaccurate colors, orange-tinted yellow, or weak blue output.

Longer runs, higher brightness settings, and lower-voltage systems make voltage drop more noticeable.

For long rgb led strips, power injection is often necessary at multiple points.

Power injection means feeding voltage into the strip again at the far end or at intermediate locations.

This reduces current burden on the strip traces and helps maintain consistent brightness.

For installations above five meters, review the strip specification and wiring diagram carefully.

A 24V strip usually performs better over distance than a 12V strip at similar power levels.

However, voltage selection must match the controller, power supply, and strip design.

How to prevent uneven brightness

1. Limit single-run length according to the datasheet.
2. Use thicker wires for longer supply leads.
3. Inject power at both ends for extended runs.
4. Test full brightness before permanent mounting.
5. Avoid chaining too many segments through one connector.

Mistake 3: Mounting rgb led strips on poor surfaces

Many rgb led strips fail mechanically because the surface was dusty, oily, textured, hot, or unsuitable for adhesive backing.

Adhesive tape bonds best to clean, dry, smooth, and stable surfaces.

Painted walls, untreated wood, rubberized coatings, and powder-coated metal may require extra mounting support.

Before installation, clean the surface with appropriate alcohol and let it dry completely.

Avoid touching the adhesive after removing the protective liner because skin oils reduce bonding strength.

In warm environments, adhesive alone may not be reliable enough for rgb led strips.

Clips, aluminum channels, or mechanical retainers provide stronger mounting and improve heat transfer.

Aluminum channels are especially useful for long runs, visible installations, and equipment lighting.

They protect the strip, reduce glare, support diffusion, and improve overall installation quality.

Surface preparation checklist

• Remove dust, grease, wax, and loose paint.
• Confirm the surface is dry before mounting.
• Use channels where heat or vibration exists.
• Avoid sharp bends around corners.
• Press evenly along the strip after placement.

Mistake 4: Cutting, bending, or connecting rgb led strips incorrectly

Rgb led strips can be cut, but only at the marked cut points.

Cutting elsewhere may damage copper pads, break circuit paths, or leave a segment unusable.

Another common issue is bending the strip too sharply across LED packages or resistors.

Sharp bending can crack solder joints, stress copper traces, and cause intermittent color channels.

When turning corners, use flexible connectors, soldered wires, or corner accessories designed for rgb led strips.

Connector quality matters because poor contact can produce flicker, color imbalance, or localized heating.

Soldered connections are often more stable than clip connectors when vibration, movement, or long operation is expected.

If soldering, use correct temperature, avoid bridging pads, and protect joints with heat-shrink tubing.

For non-solder connectors, match the strip width, pin count, and copper pad layout exactly.

Connection mistakes to avoid

• Do not cut outside marked positions.
• Do not fold strips sharply over components.
• Do not mix four-pin and five-pin accessories.
• Do not ignore polarity markings.
• Do not leave bare copper exposed.

Mistake 5: Using the wrong controller for rgb led strips

A controller must match the type, voltage, current load, and control method of rgb led strips.

Basic analog RGB strips usually use common-anode wiring with separate red, green, and blue channels.

Addressable strips use digital data signals and are controlled differently from standard rgb led strips.

Mixing these systems can result in no output, incorrect colors, or damaged electronics.

Check whether the strip is RGB, RGBW, RGBIC, SPI, DMX-compatible, or another format.

The controller must also support the total current drawn by the installed length.

If load exceeds controller capacity, use an amplifier or divide the installation into controlled zones.

For professional environments, choose controllers with thermal protection, memory functions, and stable dimming performance.

In equipment areas, avoid controllers with exposed terminals unless placed inside proper enclosures.

Controller selection questions

• Is the strip analog RGB or addressable?
• Does the controller match the strip voltage?
• Can each channel handle the required current?
• Is dimming smooth at low brightness?
• Are terminals protected from accidental contact?

Mistake 6: Overlooking heat, enclosure conditions, and operating time

Heat is one of the most overlooked factors in rgb led strips performance.

LEDs lose brightness faster when operated at high temperature for long periods.

Even low-voltage strips can become warm when run at full output in enclosed spaces.

Display cabinets, control panels, machines, and sealed housings need extra thermal attention.

Aluminum mounting profiles help spread heat away from rgb led strips and protect the adhesive.

Lower brightness settings also extend product life while often preserving sufficient visual impact.

If lighting is required continuously, select strips with quality PCB materials and verified ratings.

For humid areas, choose appropriate IP-rated strips and compatible connectors.

Remember that waterproof silicone coatings may retain heat, so thermal planning still matters.

FAQ and troubleshooting table for rgb led strips

This table is useful before installation and during fault diagnosis.

Most rgb led strips problems can be traced to power, wiring, heat, mounting, or controller mismatch.

How should you plan a reliable rgb led strips installation?

Start by defining the application, brightness target, viewing distance, available space, and operating hours.

Then select rgb led strips with suitable voltage, density, color quality, protection rating, and mounting method.

Measure every segment before cutting, and create a simple wiring layout before buying accessories.

Plan where the power supply, controller, amplifier, connectors, and cable routes will be placed.

Keep service access in mind, especially when strips are installed inside cabinets or enclosures.

Test the complete system on a bench before removing adhesive backing or closing panels.

Run the rgb led strips at full white output during testing because that usually draws maximum current.

Look for flicker, connector heat, color shift, dim ends, and unstable controller response.

Only proceed with permanent mounting after the electrical behavior is confirmed.

Final takeaway: avoid small mistakes before they become big failures

Rgb led strips deliver flexible, attractive, and efficient lighting when installed with proper electrical and mechanical discipline.

The biggest mistakes involve mismatched power supplies, long unsupported runs, poor surfaces, weak connectors, wrong controllers, and neglected heat.

Avoiding these issues improves brightness consistency, color stability, safety, and service life.

Before installation, calculate the load, verify compatibility, prepare the surface, and test the full system.

For demanding environments, choose better wiring, aluminum channels, protected terminals, and reliable control hardware.

A careful setup turns rgb led strips from a simple lighting product into a dependable lighting solution.

Use this checklist before your next project to prevent avoidable failures and achieve cleaner, safer, longer-lasting illumination.
